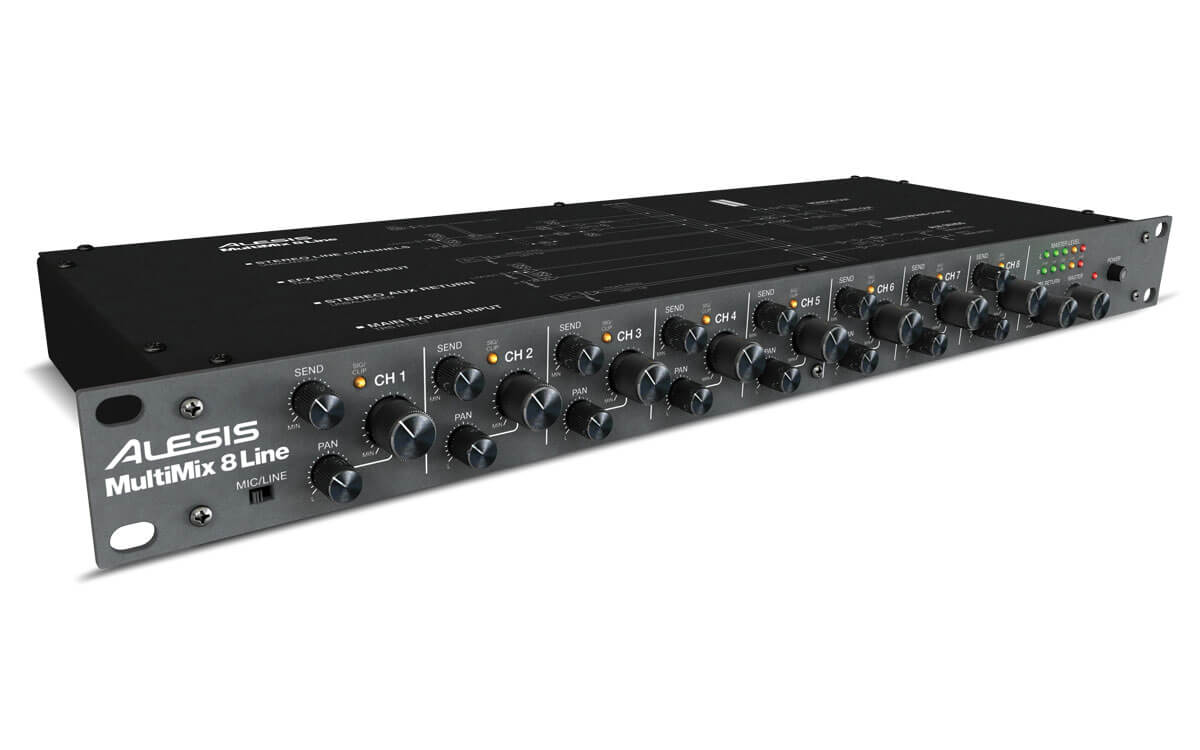

Alesis MultiMix 8 Line

Περιγραφή

Eight-Channel Stereo Line Mixer.

Flexible, expandable rack mixer for installs, stage, and studio.

MultiMix 8 Line is an ideal mixer for the stage, studio, boardrooms,conference rooms, health clubs, restaurants, houses of worship, and more.

• Eight-channel stereo line mixer.
• Microphone/line input on channel one.
• Stereo effects bus which can be shared between two linked units.
• Channel expansion feature for expansion to 16 stereo input channels.
• Individual Pan and Effects Send controls on each channel.
• Signal clip and overload LEDs on each input channel.
• Stereo five-stage LED ladder for output level indication.
• Stereo monitor out.
• Mono input source compatibility for stereo output.
• 1RU 19-inch standard equipment rack size

Test Conditions:

Master level: max
Effects Return level: min
Signal fed into left/mono input of channel under test

For channel under test:
gain = mid
pan = mid
effects = min

For all other channels:
gain = min
pan = mid
effects = min

Line Inputs:

THD+N: 0.005% @ 1kHz, 16dBu
SNR A-weighted: 101dB
Frequency response: +0.1dB / -1dB @ 20kHz
Intra-channel crosstalk (left-to-right within one channel): -55.5dB typical @ 10kHz, 15dBu
Inter

Microphone Input:

THD+N: 0.007% @ 1kHz, -24dBu, 600Ohm
SNR A-weighted: 90dB
Frequency response: -2.5dB @ 20Hz, -4.25dB @ 20kHz

Effects Sends:

Max output: 17dBu (unbalanced)
THD+N: 0.002% @ @ 1kHz, 16dBu

Stereo Output:

Max output: 26dBu (balanced)
SNR with all channel levels at min: 101.5dB
SNR with all channel levels at max: 103.0dB
